LSI MegaRAID M5015 & M5014 스펙

레이드카드 M5015 사양입니다.

Specifications

The ServeRAID M5015 and ServeRAID M5014 adapter cards have the following specifications:

• Eight internal 6 Gbps SAS/SATA ports
• Two Mini-SAS internal connectors (SFF-8087)
• 6 Gbps throughput per port
• 800 MHz PowerPC processor with LSI SAS2108 6 Gbps RAID on Chip (ROC) controller
• x8 PCI Express 2.0 host interface
• Onboard data cache (DDR2 running at 800 MHz):
  • ServeRAID M5015: 512 MB
  • ServeRAID M5014: 256 MB
• Intelligent Li-Ion-based battery backup unit with up to 48 hours of data retention:
  • ServeRAID M5015: Standard in the option part number
  • ServeRAID M5014: Optional
• Supports RAID levels 0, 1, 5, 10, and 50 (RAID 6 and 60 support with the optional M5000 Advanced Feature Key)
• Connects to up to 32 SAS or SATA drives
• SAS and SATA drives are supported, but the mixing of SAS and SATA in the same RAID array is not supported
• Supports up to 64 logical volumes
• Supports LUN sizes up to 64 TB
• Configurable stripe size up to 1 MB
• Compliant with Disk Data Format (DDF) configuration on disk (COD)
• S.M.A.R.T. support

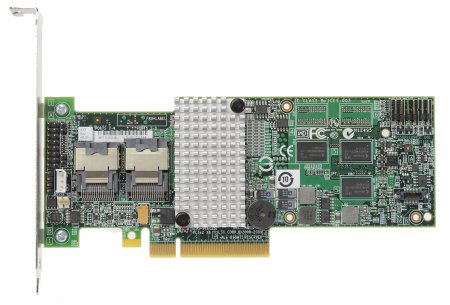

LSI MegaRAID M5015
